Nickle Alloy Ball Valve Inconel 600 Floating Trunnion Elastic

Nickle Alloy Ball Valve: The opening and closing element of a ball valve is a ball with a circular passage that rotates around an axis perpendicular to the passage. The ball moves with the valve stem to open or close the passage. A ball valve can be tightly closed with a 90-degree rotation and a very small turning torque. Depending on the operating conditions, different actuating devices can be assembled to form ball valves with various control methods, such as electric ball valves, pneumatic ball valves, hydraulic ball valves, and so on.

Principle of ball valve structure:

• Ball valves are not restricted by the installation direction and the flow direction of the medium can be arbitrary. They have a low fluid resistance, and full-bore ball valves essentially have no flow resistance.
• The structure of the ball valve is simple, with a relatively small volume and light weight, making it easy to maintain.
• Tight and reliable. It has two sealing surfaces, and currently, the sealing surfaces of ball valves widely use various plastics, which provide good sealing and can achieve complete sealing. They have also been widely used in vacuum systems.
• Ball valves are suitable for frequent operation, with quick and easy opening and closing. They are convenient to operate, opening and closing rapidly, requiring only a 90° rotation from full open to full close, which is convenient for remote control.
• Easy maintenance, the structure of the ball valve is simple, and the sealing rings are usually movable, making them easy to dismantle and replace.
• Ball valves have good sealing performance. When fully open or closed, the sealing surface of the ball and the seat is isolated from the medium, and the medium does not cause erosion of the valve sealing surface when passing through.
• A wide range of applications, with bore sizes ranging from a few millimeters to several meters, and they can be used from high vacuum to high pressure.
• Since ball valves have a wiping action during the opening and closing process, they can be used in media with suspended solid particles.
• Ball valves have low fluid resistance, no vibration, and low noise.

INCONEL ALLOY 600 (nickel-chromium-iron)(UNS N06600/W.Nr. 2.4816) is a standard engineering material for applications which require resistance to corrosion and heat. The alloy also has excellent mechanical properties and presents the desirable combination of high strength and good workability.

Characteristics:

The excellent mechanical properties of this alloy endow the material with high strength and good workability. It has good corrosion resistance, especially in alkaline environments, and can be used in low and high temperature environments.

Corrosion Resistance:

Alloy 600 is able to withstand a variety of corrosion. The alloy has excellent resistance to alkaline solution performance and good resistance to strong oxidizing acid solution performance. It is particularly resistant to the erosion of dry chlorine or hydrogen chloride even at temperatures up to 650°C.

Typical Applications:

• Heat exchangers
• Furnaces
• Aircraft exhaust systems
• Nuclear reactor components
• Production of caustic soda
• Chemical and food processing equipment
• Condensers
• Evaporation tubes

Chemical Composition:

Physical Properties & Mechanical Properties:

Thermal Properties:

Recommended Tool Types & Machining Conditions:

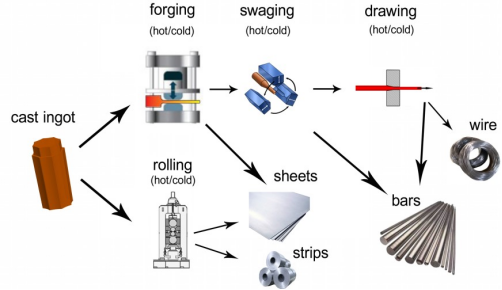

Processing Flow Chart:

Hunan Dinghan New Material Technology Co.,Ltd. (DINGSCO) specialized in Nickel Based Corrosion Resistant and High Temperature alloys products which used in the world’s most technically demanding industries and applications.

We have complete advanced technology facilities to produce best quality alloys to meet exacting your specifications such as VIM (Vacuum lnduction Melting) furnace to provide high purity Alloys,ESR (Electro Slag Re-melting) furnace to enhances the structure and purity of the Alloys, and CNC machining equipments (Lathe, Wire cutting, Drilling,Milling) to provide high precision finished products.

We are dedicated to providing our customers with best quality products,fastest possible deliveries, most competitive prices of Nickel Based Corrosion Resistant and High Temperature alloys in bars,rods,forged flanges, valve parts, forged shapes (shafts, discs, blocks, hubs,rings, cylinders and tailor shapes) according to ASTM,ASME,API,AMS, NACE and other industry standards.

We can help you gain a competitive edge in the market by responding to a rush quote in less than 24 hours and even complex requests for price and delivery quotations are responded to within 48 hours.
