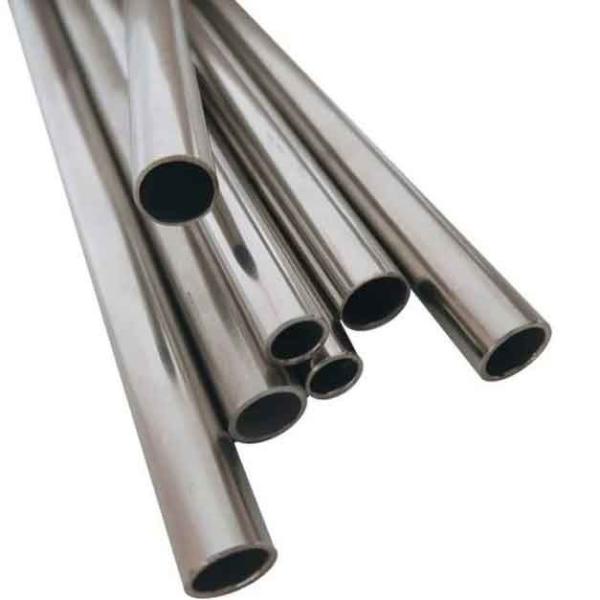

Hastelloy B-3 N10675/W.Nr.2.4600 Seamless Tubing Alloy Pipes in Power Generation

This nickel steel alloy has great resistance to knife-line and heat–affected zone attack. Alloy B-3 also withstands sulfuric, acetic, formic and phosphoric acids, and other non-oxidizing media. Furthermore, this nickel alloy has excellent resistance to hydrochloric acid at all concentrations and temperatures. Hastelloy B-3’s distinguishing feature is its ability to maintain excellent ductility during transient exposures to intermediate temperatures. Such exposures are routinely experienced during heat treatments associated with fabrication.

Alloy B-3 has poor corrosion resistance to oxidizing environments, therefore, it is not recommended for use in oxidizing media or in the presence of ferric or cupric salts because they may cause rapid premature corrosion failure. These salts may develop when hydrochloric acid comes in contact with iron and copper. Therefore, if this nickel steel alloy is used in conjunction with iron or copper piping in a system containing hydrochloric acid, the presence of these salts could cause the alloy to fail prematurely.

Common Trade Names:
Hastelloy B3 , UNS N10675 , W.Nr:2.4600

Specifications:
DIN: 17744, 17750, 17751, 17752, 17753
ASTM: B 333, B 335, B 564, B 619, B 622, B 626
ASME: SB 333, SB 335, SB 619, SB 622, SB 626

Hastelloy B3 Characteristic:

• Maintains excellent ductility during transient exposures to intermediate temperatures
• Excellent resistance to pitting, corrosion and stress-corrosion cracking
• Excellent resistance to knife-line and heat-affected zone attack
• Excellent resistance to acetic, formic and phosphoric acids and other non-oxidizing media
• Thermal stability superior to alloy B-2
• Resistance to hydrochloric acid at all concentrations and temperatures

Hastelloy B-3 Available Shape:

• Bars & Rods & Foring Ring /Flanges
• Sheet & Plate
• Strip & Coil
• Welding Wire &Spring wire
• Seamless Tube & Welded Pipe

Hastelloy B3 Applications:

• Acetic acid production, initial phase in presence of iodide catalyst
• Methyl methacrylate production with hot 98 % H2SO4
• Production of herbicides, insecticides, ethylene glycol, ethyl benzene

Chemical Composition(%):
