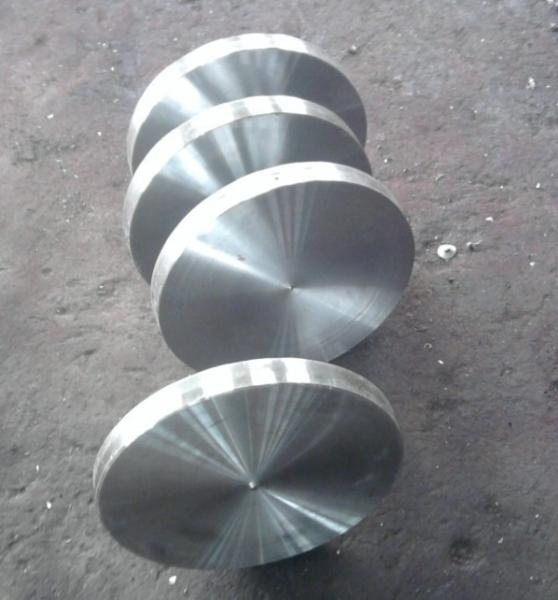

Nickel Alloy Forging Discs Inconel 625 Nuclear Industry Reactor Core Components

Nickle Alloy disc, a thin, projecting metal stripattached to asemiconductor to dissipateheat. It is widely used incatering and kitchenware,elevators,chemical equipment,machinery manufacturing,architectural decoration, metaproducts, automobiles, pressurevessels and other felds.

Nickel Alloy 625 (UNS NO6625) is a material withexcellent resistance to pitting, crevice, and corrosioncracking. This alloy is highly resistant in a wide range oforganic and mineral acids, and it exhibits good hightemperature strength. Excellent mechanical properties at both extremely lowand extremely high temperatures. Outstanding resistance to pitting, crevice corrosion, and intercrysta ine corrosion. Almost complete freedom from chloride induced stress corrosion cracking. High resistance to oxidation at elevated temperaturesup to 1050°C. Good resistance to acids, such as nitric, phosphoricsulfuric, and hydrochloric, as wel as to alkalis makespossible the construction of thin structura parts ofhigh heat transfer.

Applications

• Components where exposure to sea water and higrmechanical stresses are required.
• Oil and gas production where hydrogen sulfide anoelementary sulfur exist at temperature in excess of150°C.
• Components exposed to flue gas or in flue gasdesufurization pants.
• Flare stacks on offshore oil platforms.
• Hydrocarbon processing from tar-sand and oil-shale
• Recovery projects.

​

Fabrication Data:

Alloy 625 can be easily welded and processed by standard shop fabrication practices, however because the high strength of the alloy, it resists deformation at hotworking temperatures.

• Hot Forming. The hot-working temperature range for Alloy 625 is 1650–2150°F (900–1177°C). Heavy working needs to occur as close to 2150°F (1177°C) as possible, while lighter working can take place down to 1700°F (927°C). Hot-working should occur in uniform reductions to prevent duplex grain structure
• Cold Forming. Alloy 625 can be cold-formed by the standard shop fabrication practices. The alloy should be in the annealed condition. Work hardening rates are higher than the austenitic stainless steels.
• Welding. Alloy 625 can be readily welded by most standard processes including GTAW (TIG), PLASMA, GMAW (MIG/MAG), SAW and SMAW (MMA). A post weld heat treatment is not necessary. Brushing with a stainless steel wire brush after welding will remove the heat tint and produce a surface area that does not require additional pickling.
• Machining. Alloy 625 should preferably be machined in the annealed condition. Since Alloy 625 is prone to workhardening, only low cutting speeds should be used and the cutting tool should be engaged at all times. Adequate cut depth is necessary to assure avoiding contact with the previously formed work-hardened zone.

Chemical Composition:

Physical Properties:

Thermal Properties:

Processing Flow Chart:

Hunan Dinghan New Material Technology Co.,Ltd. (DINGSCO) specialized in Nickel Based Corrosion Resistant and High Temperature alloys products which used in the world’s most technically demanding industries and applications.

We have complete advanced technology facilities to produce best quality alloys to meet exacting your specifications such as VIM (Vacuum lnduction Melting) furnace to provide high purity Alloys,ESR (Electro Slag Re-melting) furnace to enhances the structure and purity of the Alloys, and CNC machining equipments (Lathe, Wire cutting, Drilling,Milling) to provide high precision finished products.

We are dedicated to providing our customers with best quality products,fastest possible deliveries, most competitive prices of Nickel Based Corrosion Resistant and High Temperature alloys in bars,rods,forged flanges, valve parts, forged shapes (shafts, discs, blocks, hubs,rings, cylinders and tailor shapes) according to ASTM,ASME,API,AMS, NACE and other industry standards.

We can help you gain a competitive edge in the market by responding to a rush quote in less than 24 hours and even complex requests for price and delivery quotations are responded to within 48 hours.
