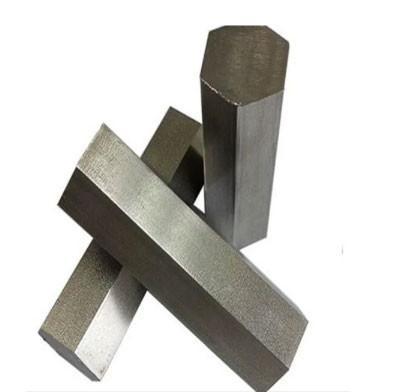

    Round / Square Duplex Stainless Steel Bar High Strength Cold Rolled Steel Hex Bar

    Ask Lasest Price
    Brand Name : DINGSCO
    Model Number : According to customers' requests
    Certification : ISO 9001:2015, PED 2014/68 EU, API 6A, API-20B, TSG, NORSOK
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : Negotiable
    Delivery Time : (Sample order) 7 days
    • Product Details
    • Company Profile

    Round / Square Duplex Stainless Steel Bar High Strength Cold Rolled Steel Hex Bar

    Nickel Base Square/Round Bar Duplex F44/51/53/55 Cold Rolled Alloy Steel Hexagonal Rod


    Duplex Stainless Steel (DSS) refers to stainless steel in which ferrite and austenite each account for about 50%. Generally, the content of the smaller phase needs to be at least 30%. In the case of low C content, the Cr content is 18%~28% and the Ni content is 3%~10%. Some steels also contain alloying elements such as Mo, Cu, Nb, Ti, and N.


    This type of steel has the characteristics of both austenitic and ferritic stainless steel. Compared with ferrite, it has higher plasticity and toughness, no room temperature brittleness, significantly improved intergranular corrosion resistance and welding performance, while maintaining iron content. The solid stainless steel is brittle at 475°C, has high thermal conductivity, and has superplasticity and other characteristics. Compared with austenitic stainless steel, it has high strength and significantly improved resistance to intergranular corrosion and chloride stress corrosion. Duplex stainless steel has excellent pitting corrosion resistance and is also a nickel-saving stainless steel.


    It has the following salient features:


    • Duplex Structure: Duplex stainless steels get their name from their microstructure, which consists of approximately equal parts of the ferrite and austenite phases. This structure gives the material a unique combination of properties.
    • High strength: Compared with traditional austenitic stainless steel, duplex stainless steel has higher yield strength and tensile strength. This makes them very popular in applications requiring higher mechanical properties.
    • Good corrosion resistance: Duplex stainless steel has excellent corrosion resistance, especially in resisting pitting corrosion, crevice corrosion and stress corrosion cracking. This makes them suitable for use in highly corrosive environments such as marine environments and the chemical industry.
    • Resistant to Chloride Corrosion: Duplex stainless steels are particularly suitable for chloride-containing environments because chloride is a major corrosion factor in many traditional stainless steels.
    • Good welding properties: Duplex stainless steels generally have good welding properties, which makes them easier to work with during construction and manufacturing.
    • Lower coefficient of thermal expansion: Compared to austenitic stainless steels, duplex stainless steels have a lower coefficient of thermal expansion, which makes them more dimensionally stable under temperature changes.
    • Higher creep resistance: In some high-temperature applications, duplex stainless steels have better creep resistance than austenitic stainless steels.

    Due to these characteristics, duplex stainless steel is the material of choice in many industrial sectors such as chemicals, oil, gas, pulp and paper, and marine engineering.


    GradeUNSChemical Composition(%)Tensile Strength
    ( Mpa min)
    Yield Strength
    ( Mpa min)
    Reduction of Area ,min (%)Elongation
    min(%)
    Hardness
    (HRC)
    F44S31254NiCrCFeMnSiS650 MPa min300 MPa min35% min
    17.5-18.519.5-20.50.02maxRemainder1max0.8max0.01max
    PCuNMo
    0.03max0.5-10.18-0.226-6.5
    F51S31803NiCrCFeMnSiS620 MPa min450 MPa min….25% minHRC 24.2max
    4.5-6.521-230.3maxRemainder2max1max0.02max
    PNMo
    0.03max0.08-0.22.5-3.5
    F53S32750NiPCrSiFeMnMo795 MPa min550 MPa min….15% minHRC 32max
    6.0-8.00.03524-260.8maxRemainder1.2max3-5
    PCuSNC
    0.035max0.5max0.02max0.24-0.320.03max
    F55S32760NiCPMnWSMo750 MPa min550 MPa min45% min25% min
    6.0-8.00.03max0.03max1max0.5-10.01max3.0-4.0
    SiCuCrN
    1.0max0.5max24.0-26.00.2-0.3

    DINGSCO

    Hunan Dinghan New Material Technology Co., Ltd. (DINGSCO) specialized in Nickel Based Corrosion Resistant and High Temperature alloys products which used in the worlds most technically demanding industries and applications.We are dedicated to providing our customers with best quality products, fastest possible deliveries, most competitive prices of Nickel Based Corrosion Resistant and High Temperature alloys in bars, rods, forged flanges, valve parts (Ball, Stem, Seat Ring, etc), forged shapes (shafts, discs, blocks, hubs, rings, cylinders and other custom shapes) according to ASTM, ASME, API, AMS, NACE and other industry standards.
