    Customizable Grade 925 Incoloy Seamless Nickel Alloy Tubes for Various Industrial Uses

    Ask Lasest Price
    Brand Name : DINGSCO
    Model Number : According to customers' requirements
    Certification : ISO 9001:2015,PED 2014/68/EU,API 6A,API-20B,TSG,NORSOK
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : Negotiable
    Delivery Time : (Sample order) 7 days
    • Product Details
    • Company Profile

    Customizable Grade 925 Incoloy Seamless Nickel Alloy Tubes for Various Industrial Uses

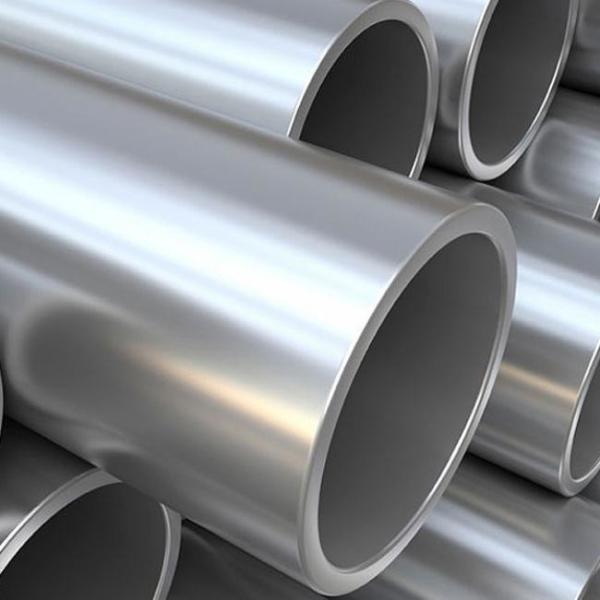

    Nickel Alloy Pipes Grade 925 Incoloy Seamless Nickel Alloy Tubes

    Material Description

    • Alloy Name: Incoloy 925 (also known as UNS N09925)
    • Chemical Composition:
      • Nickel (Ni): 42-46%
      • Chromium (Cr): 19.5-22.5%
      • Iron (Fe): Balance
      • Molybdenum (Mo): 2.5-3.5%
      • Copper (Cu): 1.5-3%
      • Titanium (Ti): 1.9-2.4%
      • Aluminum (Al): 0.1-0.5%
      • Other Elements: Trace amounts of manganese, silicon, sulfur, and carbon

    Characteristics

    • High Strength and Toughness: Incoloy 925 offers excellent mechanical properties, including high tensile and yield strength, due to its age-hardening elements like aluminum and titanium.
    • Excellent Corrosion Resistance: Provides outstanding resistance to general corrosion, pitting, crevice corrosion, and stress corrosion cracking in various environments, including sour gas (H2S) environments.
    • Good Weldability and Fabricability: Can be welded and fabricated using standard techniques, making it versatile for various applications.
    • High Resistance to Oxidation: Maintains its properties even in high-temperature environments.

    Physical Properties

    • Density: 8.08 g/cm³
    • Melting Point: Approximately 1350-1400 ℃
    • Tensile Strength: ≥ 827 MPa
    • Yield Strength: ≥ 517 MPa
    • Elongation: ≥ 30%
    • Hardness: Typically around 22 HRC (Rockwell Hardness)

    Applications

    1. Oil and Gas Industry: Used in downhole and surface gas well components, including tubing, valves, and fittings, due to its resistance to sulfide stress cracking and general corrosion.
    2. Chemical Processing: Utilized in equipment exposed to corrosive environments, such as heat exchangers, reactors, and pressure vessels.
    3. Marine Engineering: Suitable for components exposed to seawater and marine environments, offering excellent resistance to saltwater corrosion.
    4. Aerospace: Used in various aerospace components that require high strength and resistance to oxidation and corrosion.
    5. Power Generation: Employed in components such as steam generators and reactor cores where high strength and corrosion resistance are critical.

    Manufacturing and Processing

    • Manufacturing Method: Seamless pipes are manufactured through extrusion and cold drawing processes, ensuring high precision and superior surface quality.
    • Processing: Incoloy 925 can be processed using conventional cutting, welding, and forming techniques. It is important to use appropriate welding practices to maintain the material's properties.

    Dimensions and Specifications

    • Outer Diameter Range: Typically from 6 mm to 273 mm.
    • Wall Thickness: Ranges from 0.5 mm to 15 mm.
    • Length: Typically 6 meters, 12 meters, or customized according to client requirements.

    Surface Treatment

    • Pickling: Removes surface oxides and impurities.
    • Polishing: Provides a smooth surface to meet specific application requirements.
    • Passivation: Enhances corrosion resistance by forming a protective oxide layer on the surface.

    Summary

    Incoloy 925 seamless pipes are high-performance nickel-iron-chromium alloy pipes that offer a combination of excellent corrosion resistance, high strength, and good weldability. They are suitable for demanding applications in the oil and gas, chemical processing, marine engineering, aerospace, and power generation industries.

    Grade UNS Density

    Tensile Strength

    (MPa min)

    Yield Strength

    (MPa min)

    Reduction of Area min (%) Elongation min (%) Hardness (HRC)
    INCOLOY 925 N09925 8.08 965MPa min 724MPa min 25% 18% min HRC 38 max

    Chemical Composition(%):

    Ni Cr Fe C Mn S Si
    42.0-46.0 19.5-22.5 22min 0.03max 1.0max 0.03max 0.5max
    Cu P Mo Nb Ti Al
    1.5-3.0 0.03max 2.5-3.5 0.5max 1.9-2.4 0.1-0.5

    Grade UNS DIN
    Monel 400 N04400 W.Nr. 2.4360
    Monel K-500 N05500 W.Nr. 2.4375
    Inconel 625 N06625 W.Nr. 2.4856
    Inconel 718 N07718 W.Nr. 2.4668
    Inconel X-750 N07750 W. Nr. 2.4669
    Inconel 600 N06600 W.Nr. 2.4816
    Inconel 601 N06601 W.Nr. 2.4851
    Incoloy 825 N08825 W.Nr. 2.4858
    Incoloy A-286 S66286 W.Nr.1.4980
    Hastelloy C-276 N10276 W.Nr.2.4819
    Hastelloy C-22 N06022 W.Nr.2.4602
    Hastelloy C-4 N06455 W.Nr.2.4610
    Hastelloy B-3 N10675 W.Nr.2.4600
    Hastelloy X N06002 W.Nr.2.4665
    Hastelloy B-2 N10665 W.Nr.2.4617
